FTW STG

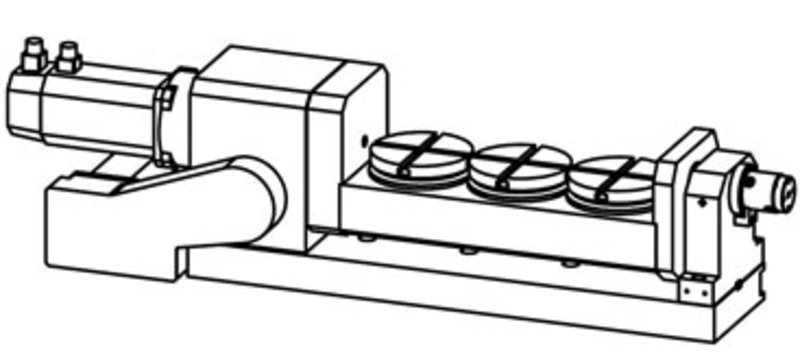

The design concept for the Two Axis Rotary Tables in the TG series offers 5 axis machining for up to 4 spindles in the swivelling bridge and can be equipped with rotary coupling for hydraulic or pneumatic work piece clamping systems.
The Two Axis Rotary Tables are designed by using the standard modular components of the TG Single Axis Rotary Tables.
Work piece loading at once for up to 4 spindles and machining.
Technical parameter:
|
|
|
STG 160 - 115
|
STG 220 - 160
|
||
|
|
|
Swivveling Axis
|
Turning Axis
|
Swivveling Axis
|
Turning Axis
|
|
Face plate diameter
|
[mm]
|
|
160 - 190
|
|
220 - 320
|
|
Max.work piece weight
|
[kg]
|
|
50
|
|
450
|
|
Max. tangential moment
(imclamped position)
|
[Nm]
|
1.400
|
600
|
3.000
|
1.400
|
|
Max. tilting moment
|
[Nm]
|
|
1.000
|
|
2.000
|
|
Max. transmittable torque by worm gear
|
[Nm]
|
525
|
250
|
2.150
|
525
|
|
Max. speed of faceplate
|
[min]
|
35
|
30
|
25
|
30
|
|
Max. run-out of spindle
|
[mm]
|
0,01
|
0,01
|
0,01
|
0,01
|
|
Max. wobble of spindle
|
[mm]
|
0,01
|
0,01
|
0,01
|
0,01
|
|
Position accuracyaccording to VDI DGQ 3441
|
[sec]
|
40
|
30
|
20
|
30
|
|

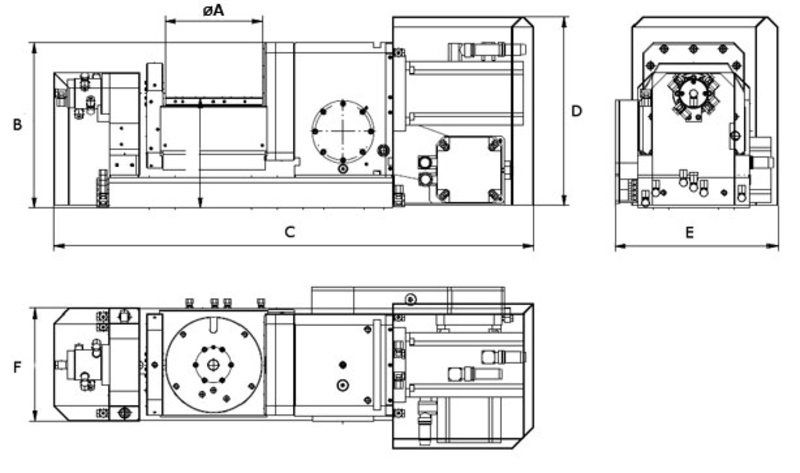

A
|
[mm]
|
190
|
320
|
||
|
B
|
[mm]
|
325
|
440
|
||
|
C
|
[mm]
|
946
|
1.185
|
||
|
D
|
[mm]
|
371
|
440
|
||
|
E
|
[mm]
|
320
|
365
|
||
|
F
|
[mm]
|
222
|
320
|
||
