NC-Dividing Heads DA TG
In the range of up to 250mm faceplate diameter, FTW offers the following NC-dividing heads with direct drive as standard devices.
In principal, customized solutions or adaptions are possible, just like for all other series we offer.
Einachs-Geräte
| Name | Peak Height | Speed | Max.-Torque | Max. tangential moment | Recommended use |
|---|---|---|---|---|---|

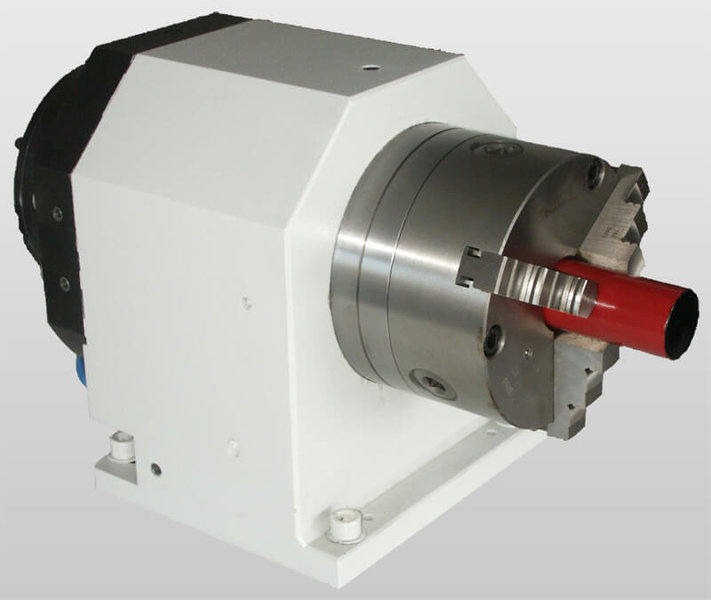

| DA TG 160 | 165mm | 100 U/min | 100 / 180 Nm | 400 - 800 Nm | Workpiece positioning |

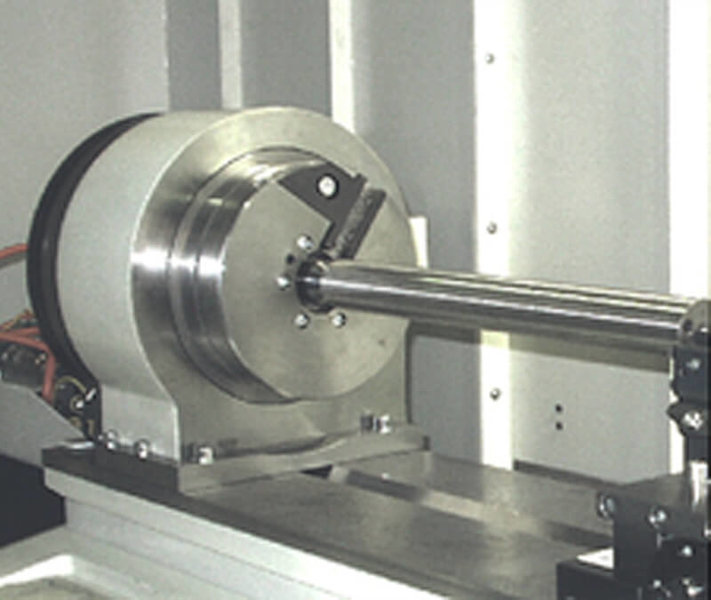

| DA TG 180 | 180mm | 100 U/min | 325 / 615 Nm | 800 Nm | Workpiece positioning |
| DA TG 110 | 110mm | 500 U/min | 46 / 97 Nm | -------- | grind |
Positioniergenauigkeit nach je Kundenwunsch von ± 20 / ± 10 / ±6 / ± 2 Winkelsekunden.
Leistungsdaten beziehen sich auf Betrieb mit Kühlung.
Zweiachs-Geräte
| Name | Axis | Max. Speed | Max.-Torque | Max. tangential moment | Recommended use |
|---|---|---|---|---|---|

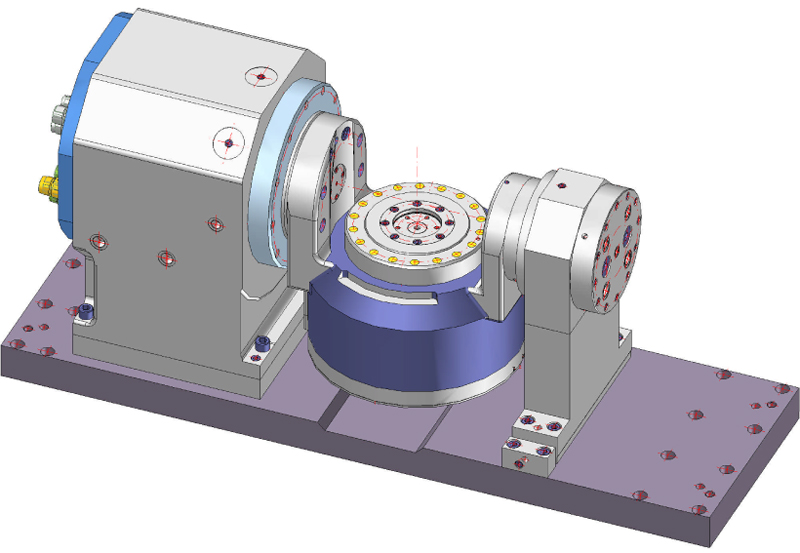

| SDA TG 250 | Schwenkachse | 250 U/min | 200 / 360 Nm | 400 Nm | Workpiece positioning, 5-axis machining |
| Drehachse | 250 U/min | 100 / 180 Nm | 300 Nm |
